Lucid sirius

B-Sirius_Aluminium_oben
B-Sirius_Aluminium_Seite
LUCID Sirius - 290 Watt - Vorderansicht - freigestellt_verdreht
DS_sirius 150_Seite_freigestellt
Lucid_sirius_490_Watt_Vorderansicht_frei_B

  • Areas of application

    Industrial and production halls, warehouses and logistics halls, hangars and shipyards, general high applications

  • Protection degree

    IP 65 according to DIN EN 60529

  • Beam angle

    Available with 60° or 100° beam angle

  • Control system

    Can be automated via sensor, DALI and 0-10 volt function

  • Photobiological safety

    High-quality LEDs ensure that the retina remains undamaged even during long periods of work

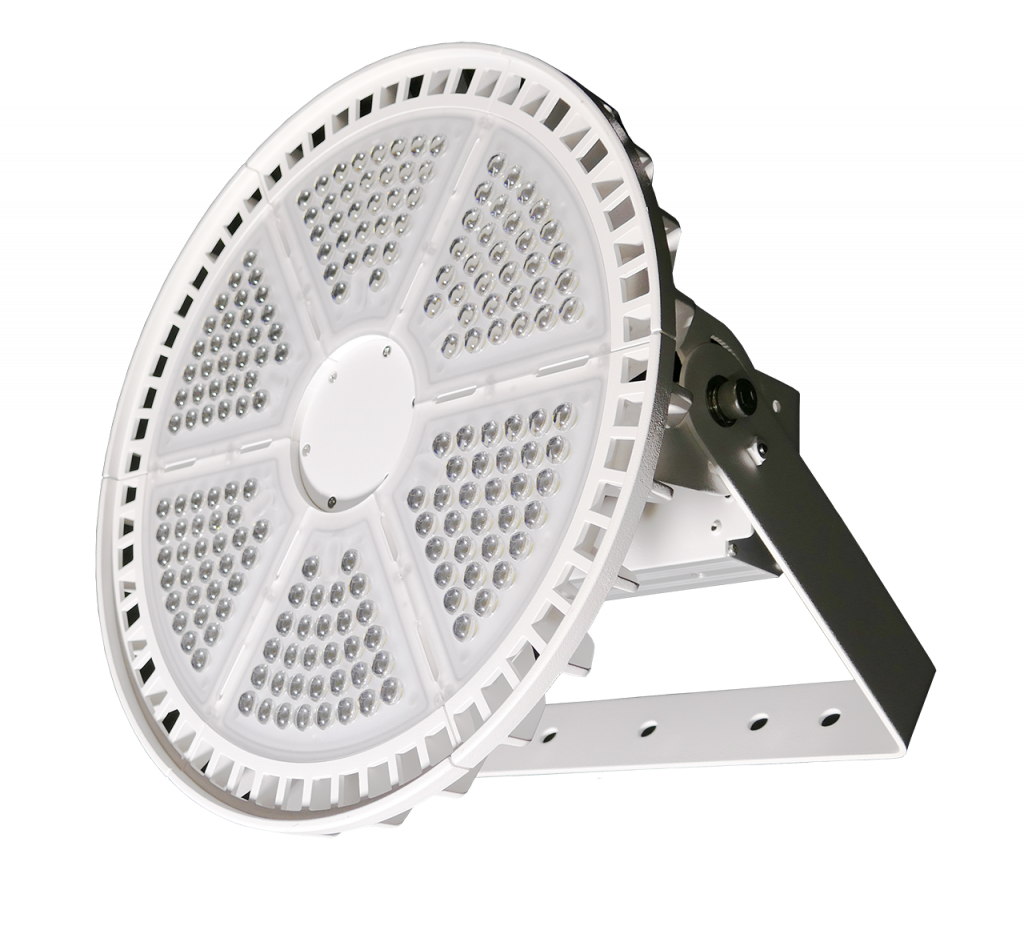

Elegant design in three different performance levels

The Lucid sirius from LIGHTS offers you the perfect industrial lighting. With up to 70,800 lumens, the LED high bay spotlight is ideal for your production halls and warehouses, but can also be used perfectly in exhibition halls and hangars.

The LED high bay luminaire is available in three different wattages and guarantees perfect lighting conditions. The Lucid Sirius has a high system efficiency of up to 150 lumens/watt, a luminous flux of 15,000 to 70,800 lumens and can be used up to a height of over 14 meters. Depending on the version, the output is 150 watts, 250 watts or 500 watts.

The intelligent LED high bay spotlight can also be optionally equipped with a DALI function or used as emergency power lighting, as the LED luminaire can also be relied on in emergency situations.

All Lucid Sirius versions are available with a narrow beam angle of 60 degrees or a wide beam angle of 100 degrees (except 500 watts).

Depending on the application, Lucid sirius can be equipped with a glass pane against acid and aerosols and/or with light automation in the form of sensors and OS Net. Lucid sirius is also available as a marine version with a special coating against salt water pollution in harbors, on ships and other maritime industries. Our sirius is also suitable for crane lighting.

Thanks to the individually adjustable long-life power supply unit, energy savings of up to 80 percent can be achieved with the best quality of light. The heat sink of the Lucid sirius 150 is made of an aluminum-magnesium alloy and weighs just 2,600 grams. This makes installation considerably easier.

The product bears the ENEC mark, which guarantees that our Lucid sirius complies with the relevant EN safety standards and performance testing requirements (in particular the EU Low Voltage Directive). Furthermore, as a manufacturer, we are committed to working with a quality system in accordance with ISO9001 and to certifying the product every year in the form of a production inspection of our factory in Backnang by TÜV Süd.
Manufacturer's guarantee
Up to 0 years
Spare parts guarantee
Up to 0 years

Variants

Lucid sirius 150

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
17631
100°
5.000 K | daylight white
Ra > 85
14.500 lm - 21.500 lm / 100 - 150 W
IP 65
-30°C to +50°C
17632
100°
4.000 K | normal white
Ra > 85
14.500 lm - 21.500 lm / 100 - 150 W
IP 65
-30°C to +50°C
17636
60°
5.000 K | daylight white
Ra > 85
15.000 lm – 22.500 lm / 100 -150 W
IP 65
-30°C to +50°C
17637
60°
4.000 K | normal white
Ra > 85
15.000 lm – 22.500 lm / 100 -150 W
IP 65
-30°C to +50°C
17831
100°
5.000 K | daylight white
Ra > 85
14.500 lm - 21.500 lm / 100 - 150 W
IP 65
-30°C to +50°C
17832
100°
4.000 K | normal white
Ra > 85
14.500 lm - 21.500 lm / 100 - 150 W
IP 65
-30°C to +50°C
17836
60°
5.000 K | daylight white
Ra > 85
15.000 lm – 22.500 lm / 100 -150 W
IP 65
-30°C to +50°C
17837
60°
4.000 K | normal white
Ra > 85
15.000 lm – 22.500 lm / 100 -150 W
IP 65
-30°C to +50°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
17631
100°
5.000 K | daylight white
Ra > 85
14.500 lm - 21.500 lm / 100 - 150 W
IP 65
-30°C to +50°C
17632
100°
4.000 K | normal white
Ra > 85
14.500 lm - 21.500 lm / 100 - 150 W
IP 65
-30°C to +50°C
17636
60°
5.000 K | daylight white
Ra > 85
15.000 lm – 22.500 lm / 100 -150 W
IP 65
-30°C to +50°C
17637
60°
4.000 K | normal white
Ra > 85
15.000 lm – 22.500 lm / 100 -150 W
IP 65
-30°C to +50°C
17831
100°
5.000 K | daylight white
Ra > 85
14.500 lm - 21.500 lm / 100 - 150 W
IP 65
-30°C to +50°C
17832
100°
4.000 K | normal white
Ra > 85
14.500 lm - 21.500 lm / 100 - 150 W
IP 65
-30°C to +50°C
17836
60°
5.000 K | daylight white
Ra > 85
15.000 lm – 22.500 lm / 100 -150 W
IP 65
-30°C to +50°C
17837
60°
4.000 K | normal white
Ra > 85
15.000 lm – 22.500 lm / 100 -150 W
IP 65
-30°C to +50°C

Lucid sirius 250

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
17741
100°
5.000 K | daylight white
Ra > 85
25.600 lm - 32.000 lm / 200 - 250 W
IP 65
-30°C to +50°C
17742
100°
4.000 K | normal white
Ra > 85
25.600 lm - 32.000 lm / 200 - 250 W
IP 65
-30°C to +50°C
17746
60°
5.000 K | daylight white
Ra > 85
27.300 lm - 34.200 lm / 200 - 250 W
IP 65
-30°C to +50°C
17747
60°
4.000 K | normal white
Ra > 85
27.300 lm - 34.200 lm / 200 - 250 W
IP 65
-30°C to +50°C
17841
100°
5.000 K | daylight white
Ra > 85
25.600 lm - 32.000 lm / 200 - 250 W
IP 65
-30°C to +50°C
17842
100°
4.000 K | normal white
Ra > 85
25.600 lm - 32.000 lm / 200 - 250 W
IP 65
-30°C to +50°C
17846
60°
5.000 K | daylight white
Ra > 85
27.300 lm - 34.200 lm / 200 - 250 W
IP 65
-30°C to +50°C
17847
60°
4.000 K | normal white
Ra > 85
27.300 lm - 34.200 lm / 200 - 250 W
IP 65
-30°C to +50°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
17741
100°
5.000 K | daylight white
Ra > 85
25.600 lm - 32.000 lm / 200 - 250 W
IP 65
-30°C to +50°C
17742
100°
4.000 K | normal white
Ra > 85
25.600 lm - 32.000 lm / 200 - 250 W
IP 65
-30°C to +50°C
17746
60°
5.000 K | daylight white
Ra > 85
27.300 lm - 34.200 lm / 200 - 250 W
IP 65
-30°C to +50°C
17747
60°
4.000 K | normal white
Ra > 85
27.300 lm - 34.200 lm / 200 - 250 W
IP 65
-30°C to +50°C
17841
100°
5.000 K | daylight white
Ra > 85
25.600 lm - 32.000 lm / 200 - 250 W
IP 65
-30°C to +50°C
17842
100°
4.000 K | normal white
Ra > 85
25.600 lm - 32.000 lm / 200 - 250 W
IP 65
-30°C to +50°C
17846
60°
5.000 K | daylight white
Ra > 85
27.300 lm - 34.200 lm / 200 - 250 W
IP 65
-30°C to +50°C
17847
60°
4.000 K | normal white
Ra > 85
27.300 lm - 34.200 lm / 200 - 250 W
IP 65
-30°C to +50°C

Lucid sirius 500

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
17691
60°
5.000 K | daylight white
Ra > 85
bis zu 70.800 lm / 500 W
IP 65
-30°C to +50°C
17692
60°
4.000 K | normal white
Ra > 85
bis zu 70.800 lm / 500 W
IP 65
-30°C to +50°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
17691
60°
5.000 K | daylight white
Ra > 85
bis zu 70.800 lm / 500 W
IP 65
-30°C to +50°C
17692
60°
4.000 K | normal white
Ra > 85
bis zu 70.800 lm / 500 W
IP 65
-30°C to +50°C

Special solutions for special requirements are available on request.

* also available in 3,000 K and 6,500 K on request

Feel free to contact us!

Our sales team will advise you without any obligations in order to realize the ideal lighting conditions for you.

You can reach us on +49 (0)7191 32 30 20 or via the contact form below.
