Lucid linea pro

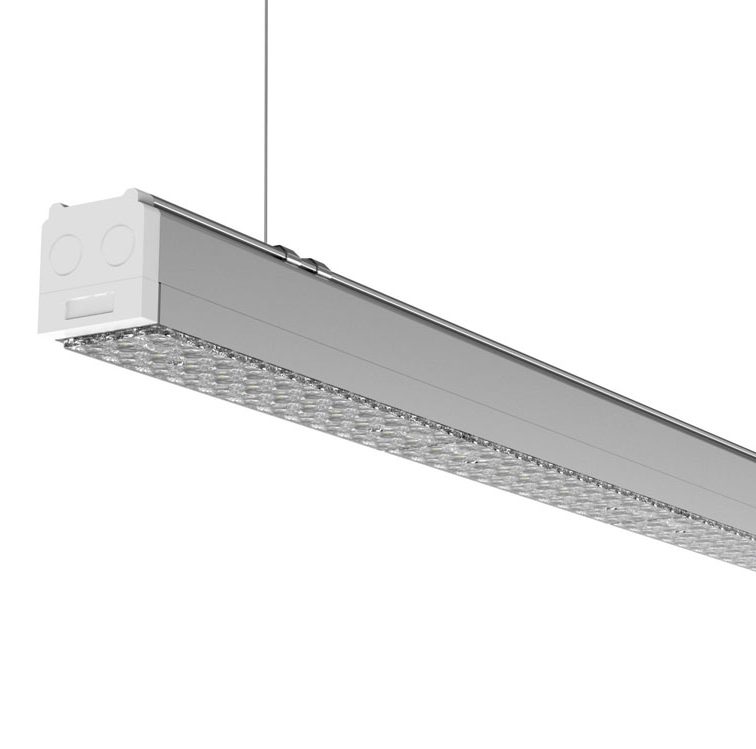

LED Linear Trunking system (1)

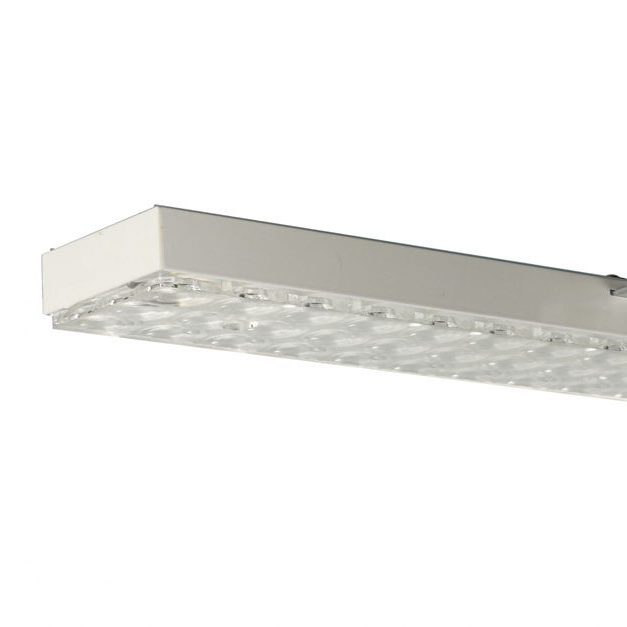

led module
led module-03
led module-02
Trunking

  • Areas of application

    Demanding industrial applications, production halls and warehouses, manufacturing and workshops, office, sales and exhibition areas

  • Protection degree

    IP 40 in accordance with DIN EN 60529

  • Beam angle

    Available with 120°/ 90°/60°/30° beam angle

  • Control system

    Can be automated via sensor and DALI connection

  • Photobiological safety

    High-quality LEDs ensure that the retina remains undamaged even during long periods of work

Continuous rooflights with intelligent plug-and-lock system

Even Confucius claimed that "standing still is going backwards". For this reason, LIGHTS is setting new standards.

The Pro version of the newly revised Lucid linea series achieves a system efficiency of up to 168 lumens/watt, depending on the high-performance optics, making it one of the most efficient luminaires with energy efficiency class (B) according to the new classification of the Federal Ministry for Economic Affairs and Climate Protection. Thanks to the latest LED technology, the Pro version achieves a lumen output of up to 10,920 lumens with an energy requirement of 65 watts.

In this way, we want to play our part in climate protection and the "Germany makes it efficient" campaign. In doing so, we also support our customers in saving energy and CO2 and increase their competitiveness and image.

You remain flexible in the future and can even remove individual light inserts in the event of a driver failure and send them in for repair. The Lucid Linea pro is available in many different beam angles. For example, 90 degree lens optics and 120 degree with glare-free diffuser optics.

Thanks to the special plug and lock system, you can assemble the continuous-row lighting system without tools, remain variable with your light at all times and can subsequently change the position of light points, add or remove light modules. The changeover takes place within seconds and is completely tool-free, so the production flow is hardly affected by subsequent rescheduling or extensions and there are no limits to your flexibility.

It is also possible to save energy by integrating intelligent lighting control via DALI, programmable daylight sensors and motion detectors. It is also possible to integrate emergency lighting for escape routes and emergency exits into the continuous-row lighting system.
Manufacturer's guarantee
Up to 0 years
Spare parts guarantee
Up to 0 years

Variants

Lucid linea pro 90

Single luminaire | standard version (230 V connection and integrated end caps)
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43041
90°
5.000 K | daylight white
Ra > 80
10.920 lm / 65 W
IP 40
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43041
90°
5.000 K | daylight white
Ra > 80
10.920 lm / 65 W
IP 40
-20°C to +45°C

Lucid linea pro 120

Single luminaire | standard version (230 V connection and integrated end caps)
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43051
120°
5.000 K | daylight white
Ra > 80
10.725 lm / 65 W
IP 40
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43051
120°
5.000 K | daylight white
Ra > 80
10.725 lm / 65 W
IP 40
-20°C to +45°C

Lucid linea pro 90

Luminaire module with optics
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43111
90°
5.000 K | daylight white
Ra > 80
10.920 lm / 65 W
IP 40
-20°C to +45°C
43112
90°
4.000 K | normal white
Ra > 80
10.920 lm / 65 W
IP 40
-20°C to +45°C
43116
90°
5.000 K | daylight white
Ra > 80
6.720 lm / 40 W
IP 40
-20°C to +45°C
43117
90°
4.000 K | normal white
Ra > 80
6.720 lm / 40 W
IP 40
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43111
90°
5.000 K | daylight white
Ra > 80
10.920 lm / 65 W
IP 40
-20°C to +45°C
43112
90°
4.000 K | normal white
Ra > 80
10.920 lm / 65 W
IP 40
-20°C to +45°C
43116
90°
5.000 K | daylight white
Ra > 80
6.720 lm / 40 W
IP 40
-20°C to +45°C
43117
90°
4.000 K | normal white
Ra > 80
6.720 lm / 40 W
IP 40
-20°C to +45°C

Lucid linea pro 120

Luminaire module with diffuser
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43121
120°
5.000 K | daylight white
Ra > 80
10.725 lm / 65 W
IP 40
-20°C to +45°C
43122
120°
4.000 K | normal white
Ra > 80
10.725 lm / 65 W
IP 40
-20°C to +45°C
43126
120°
5.000 K | daylight white
Ra > 80
6.600 lm / 40 W
IP 40
-20°C to +45°C
43127
120°
4.000 K | normal white
Ra > 80
6.600 lm / 40 W
IP 40
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43121
120°
5.000 K | daylight white
Ra > 80
10.725 lm / 65 W
IP 40
-20°C to +45°C
43122
120°
4.000 K | normal white
Ra > 80
10.725 lm / 65 W
IP 40
-20°C to +45°C
43126
120°
5.000 K | daylight white
Ra > 80
6.600 lm / 40 W
IP 40
-20°C to +45°C
43127
120°
4.000 K | normal white
Ra > 80
6.600 lm / 40 W
IP 40
-20°C to +45°C

Lucid linea pro 60

Luminaire module with optics
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43141
60°
5.000 K | daylight white
Ra > 80
10.500 lm / 65 W
IP 40
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43141
60°
5.000 K | daylight white
Ra > 80
10.500 lm / 65 W
IP 40
-20°C to +45°C

Lucid linea pro 30

Luminaire module with optics
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43131
30°
5.000 K | daylight white
Ra > 80
10.600 lm / 65 W
IP 40
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43131
30°
5.000 K | daylight white
Ra > 80
10.600 lm / 65 W
IP 40
-20°C to +45°C

Special solutions for special requirements are available on request.

* also available in 3,000 K and 6,500 K on request
