Lucid work line pro

  • Areas of application

    Workstations, work tables, workbenches, conveyor belt workstations, test stations and machine workstations, machine lighting

  • Hohe Schutzart

    IP 54 in accordance with DIN EN 60529

  • Beam angle

    Available with 80° beam angle

  • Photobiological safety

    High-quality LEDs ensure that the retina remains undamaged even during long periods of work

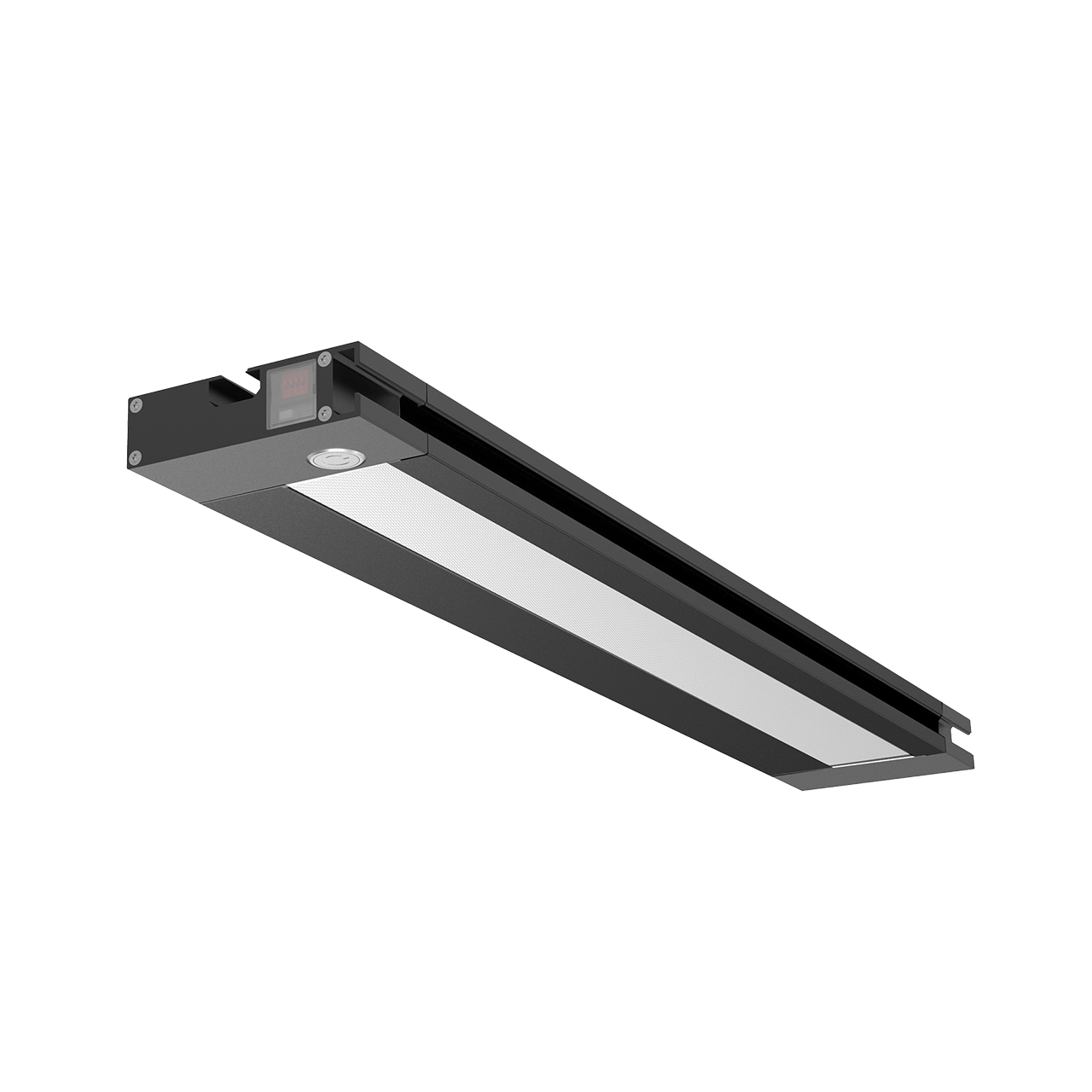

Workplace luminaire with color temperature and power switch

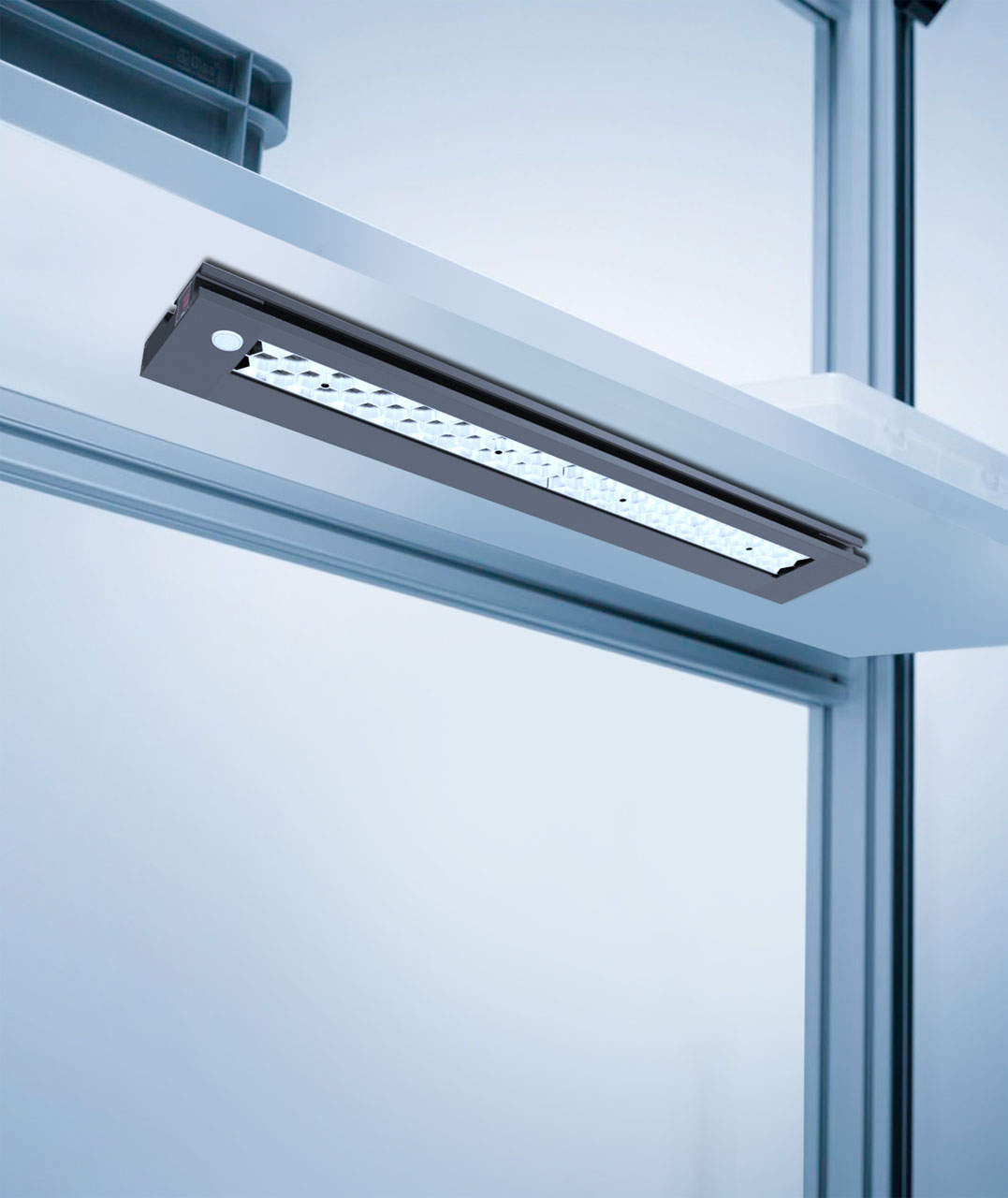

The Lucid work line pro from LIGHTS 4 Europe GmbH & Co. KG is a must in your assembly hall. The luminaire can be individually adapted to your employees or to the respective work process thanks to its adjustment options in terms of brightness and color temperature. The area of application extends to work tables, assembly stations, test stations or as machine lighting.

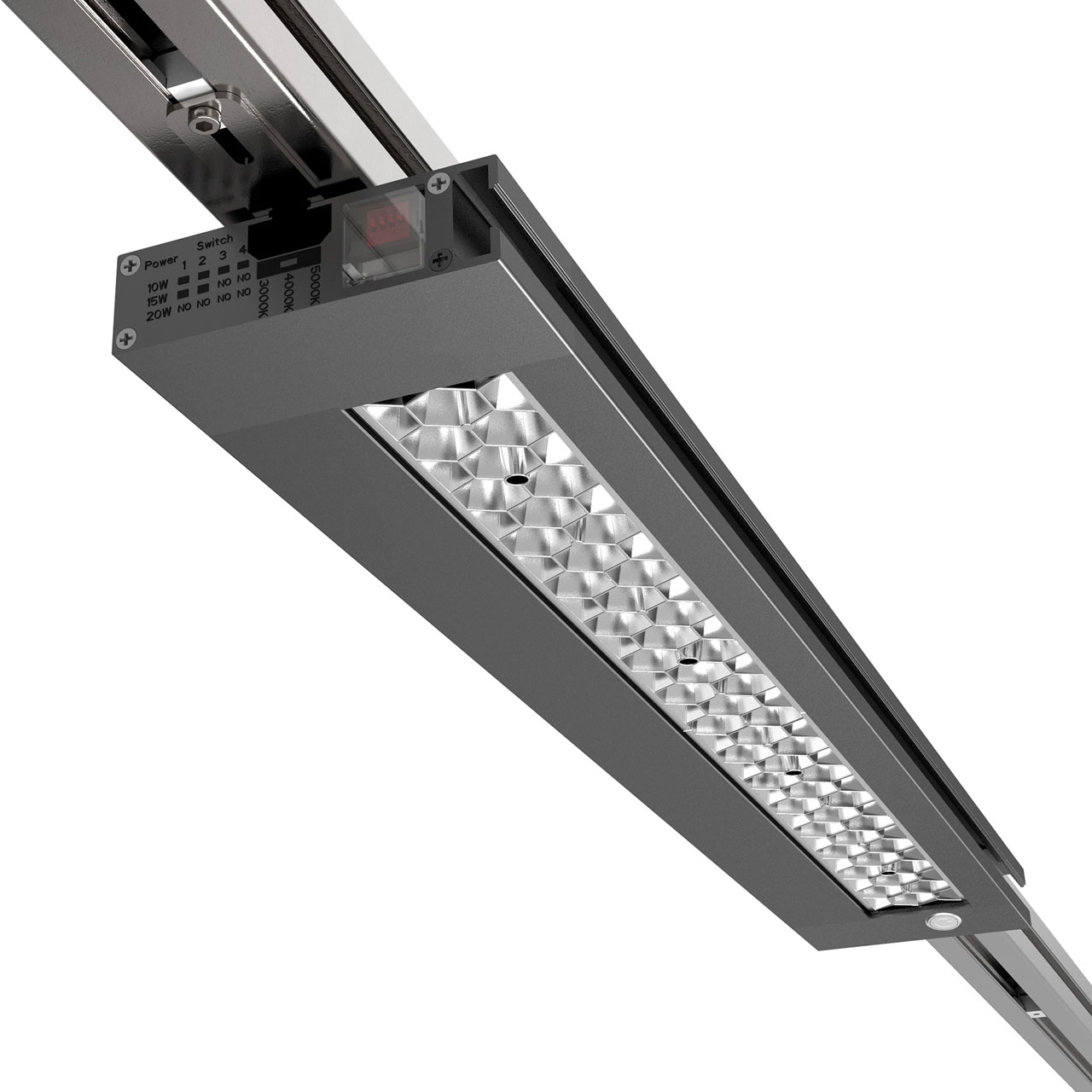

The brightness of the luminaire can be adjusted between 10 and 50 watts, depending on the size. In addition, the color temperature can easily be changed between 3,000 Kelvin warm white, 4,000 Kelvin normal white and 5,000 Kelvin daylight white. Thanks to the different color temperatures, your installation employee also has the option of manually simulating the course of the day (sunrise, midday sun, sunset). This has a positive effect on the body and health, especially in winter. The respective settings are easy to implement using simple toggle switches on the light. The light can be easily switched on and off at the touch of a button. This flexibility allows you to create a pleasant and professional working environment for each and every one of your assembly workers.

The Lucid work line pro is available in three different lengths and power levels (400 millimetres, 700 millimetres, 1,000 millimetres) and creates a luminous flux of between 1,200 and 6,000 lumens. The luminaire also has a sturdy, discreet slate-grey IP54 aluminum housing with integrated, pluggable through-wiring. The diffuse microprismatic optics are also impressive and reduce the glare of the luminaire to UGR <19. The UGR<19 specification means that the luminaire is suitable for the workplace and that the eyes are not damaged or impaired by glare, even during long periods of work.

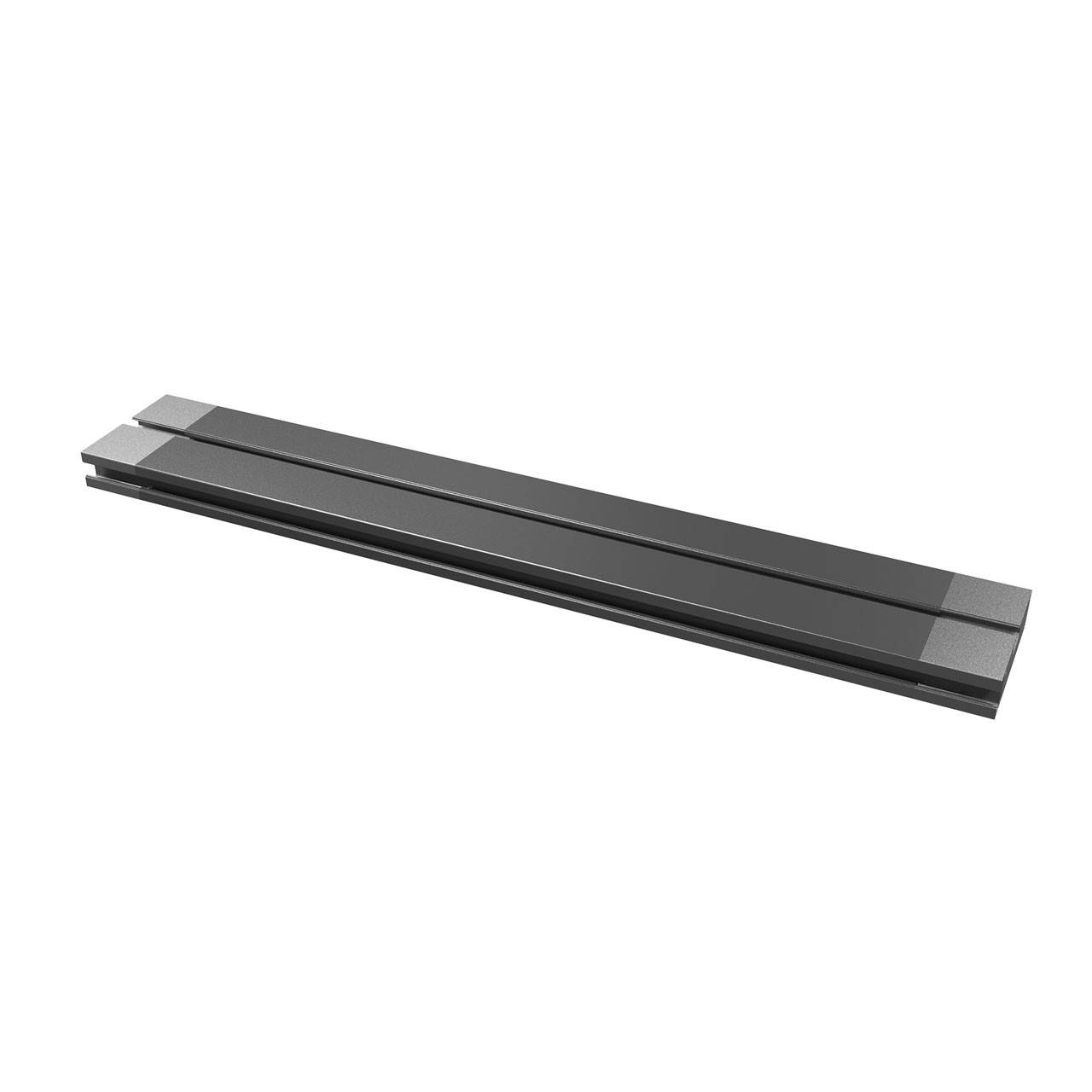

The Lucid work line pro has a modular design and components can be subsequently exchanged or replaced by LIGHTS. The Lucid work line pro can be mounted in a variety of ways. The luminaire can be mounted on many profiles such as the Bosch Rexroth profile. Another option is to mount it using a mounting bracket on a vertical strut of the assembly table. If no profiles or rails are available, the light can be mounted using a wire suspension or strong industrial magnets. This allows you to mount the luminaire on any magnetic surface.
Manufacturer's guarantee
Up to 0 years
Spare parts guarantee
Up to 0 years

Variants

Lucid work line pro 40 cm

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
49431
80°
choose between
3.000 K | warmweiß
4.000 K | normal white
5.000 K | daylight white
Ra > 85
max. 2.400 lm / 20 W
IP 54
-15°C to +50°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
49431
80°
choose between
3.000 K | warmweiß
4.000 K | normal white
5.000 K | daylight white
Ra > 85
max. 2.400 lm / 20 W
IP 54
-15°C to +50°C

Lucid work line pro 70 cm

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
49432
80°
choose between
3.000 K | warmweiß
4.000 K | normal white
5.000 K | daylight white
Ra > 85
max 3.600 lm / 30 W
IP 54
-15°C to +50°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
49432
80°
choose between
3.000 K | warmweiß
4.000 K | normal white
5.000 K | daylight white
Ra > 85
max 3.600 lm / 30 W
IP 54
-15°C to +50°C

Lucid work line pro 100 cm

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
49433
80°
choose between
3.000 K | warmweiß
4.000 K | normal white
5.000 K | daylight white
Ra > 85
max. 6.000 lm / 50 W
IP 54
-15°C to +50°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
49433
80°
choose between
3.000 K | warmweiß
4.000 K | normal white
5.000 K | daylight white
Ra > 85
max. 6.000 lm / 50 W
IP 54
-15°C to +50°C

Special solutions for special requirements are available on request.
