Lucid linea workplace

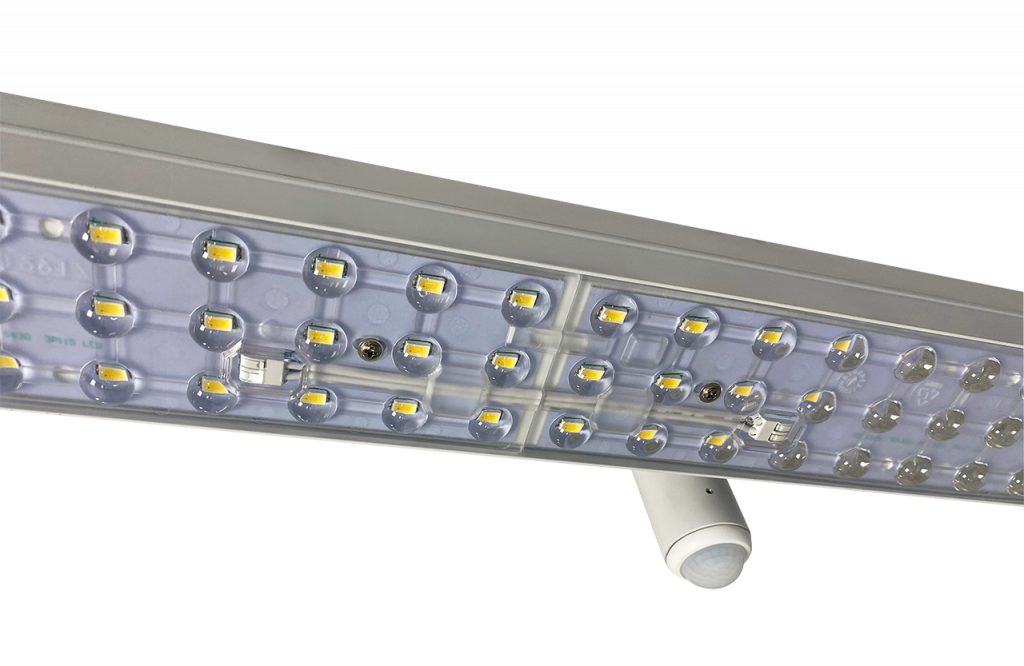

Produktbild_linea workplace_rgb
led module-03
led module
微信图片_202208101444273

  • Areas of application

    Workstations, work tables, workbenches, conveyor belt workstations, test stations and machine workstations, machine lighting

  • Protection degree

    IP 40 or IP 54 in accordance with DIN EN 60529

  • Beam angle

    Available with 90° or 120° beam angle

  • Control system

    Can be automated via app

  • Photobiological safety

    High-quality LEDs ensure that the retina remains undamaged even during long periods of work

Intelligent LED workplace luminaire with presence monitoring and daylight control

The Lucid linea workplace from LIGHTS 4 Europe GmbH & Co. KG is the ideal solution for spot lighting enhancement and can be used almost anywhere. The workplace luminaire is mainly used at assembly stations, test stations and conveyor belt workstations at all types of work tables.

The Lucid linea workplace is based on the Lucid linea single luminaire and combines an energy-efficient luminaire in efficiency class B with a high-quality sensor from B.E.G. This sensor has presence monitoring and also daylight control. The desired lux setting can be easily transmitted to the sensor using a remote control or an app and cell phone adapter. The sensor only adds enough light to meet the requirements of the workplace directive at the respective location. This saves you a significant amount of energy and also protects the environment. With the sensor sleeve supplied, the sensor detection range can be manually adjusted for each luminaire. This means that the sensor only registers a presence when the workstation is actually occupied by one of your employees. If the employee leaves the desk, the sensor simply switches off after a desired follow-up time without registering any movement. The sensor's area demarcation also prevents a disturbing atmosphere caused by the constant switching on and off of individual lights.

The Lucid linea workplace provides you with an intelligent, light-automated and energy-efficient workplace. Thanks to its modular design and simple latch system, the luminaire can be opened and closed without tools and all components can be replaced in the long term. The luminaire received an efficiency upgrade last year and achieves an energy efficiency of 168 lumens/watt thanks to its lens optics and new high-performance LED chip. The luminaire therefore achieves the new energy efficiency class B. With this upgrade, we want to play our part in climate protection and the "Deutschland machtʼs effizient" campaign. The remote control and cell phone adapter can be found in the accessories.

Manufacturer's guarantee
Up to 0 years
Spare parts guarantee
Up to 0 years

Variants

Lucid linea workplace

Lucid linea pro | Workplace light with sensor
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43041-P
90° Lens optics
5.000 K | daylight white
Ra > 80
10.920 lm / 65 W
IP 40
-20 °C to +45 °C
43042-P
90° Lens optics
4.000 K | normal white
Ra > 80
10.920 lm / 65 W
IP 40
-20 °C to +45 °C
43051-P
120° Diffuser
5.000 K | daylight white
Ra > 80
10.725 lm / 65 W
IP 40
-20 °C to +45 °C
43052-P
120° Diffuser
4.000 K | normal white
Ra > 80
10.725 lm / 65 W
IP 40
-20 °C to +45 °C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43041-P
90° Lens optics
5.000 K | daylight white
Ra > 80
10.920 lm / 65 W
IP 40
-20 °C to +45 °C
43042-P
90° Lens optics
4.000 K | normal white
Ra > 80
10.920 lm / 65 W
IP 40
-20 °C to +45 °C
43051-P
120° Diffuser
5.000 K | daylight white
Ra > 80
10.725 lm / 65 W
IP 40
-20 °C to +45 °C
43052-P
120° Diffuser
4.000 K | normal white
Ra > 80
10.725 lm / 65 W
IP 40
-20 °C to +45 °C

Lucid linea workplace

Lucid linea performer | Workplace luminaire with sensor
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44041-P
90° Lens optics
5.000 K | daylight white
Ra > 80
10.200 lm / 65 W
IP 54
-20 °C to +45 °C
44042-P
90° Lens optics
4.000 K | normal white
Ra > 80
10.200 lm / 65 W
IP 54
-20 °C to +45 °C
44051-P
120° Diffuser
5.000 K | daylight white
Ra > 80
10.660 lm / 65 W
IP 54
-20 °C to +45 °C
44052-P
120° Diffuser
4.000 K | normal white
Ra > 80
10.660 lm / 65 W
IP 54
-20 °C to +45 °C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44041-P
90° Lens optics
5.000 K | daylight white
Ra > 80
10.200 lm / 65 W
IP 54
-20 °C to +45 °C
44042-P
90° Lens optics
4.000 K | normal white
Ra > 80
10.200 lm / 65 W
IP 54
-20 °C to +45 °C
44051-P
120° Diffuser
5.000 K | daylight white
Ra > 80
10.660 lm / 65 W
IP 54
-20 °C to +45 °C
44052-P
120° Diffuser
4.000 K | normal white
Ra > 80
10.660 lm / 65 W
IP 54
-20 °C to +45 °C

Lucid linea workplace

Lucid linea pro | Workplace luminaire with touch dim
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43041-TD
90° Lens optics
5.000 K | daylight white
Ra > 80
10.920 lm / 65 W
IP 40
-20 °C to +45 °C
43042-TD
90° Lens optics
4.000 K | normal white
Ra > 80
10.920 lm / 65 W
IP 40
-20 °C to +45 °C
43051-TD
120° Diffuser
5.000 K | daylight white
Ra > 80
10.725 lm / 65 W
IP 40
-20 °C to +45 °C
43052-TD
120° Diffuser
4.000 K | normal white
Ra > 80
10.725 lm / 65 W
IP 40
-20 °C to +45 °C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
43041-TD
90° Lens optics
5.000 K | daylight white
Ra > 80
10.920 lm / 65 W
IP 40
-20 °C to +45 °C
43042-TD
90° Lens optics
4.000 K | normal white
Ra > 80
10.920 lm / 65 W
IP 40
-20 °C to +45 °C
43051-TD
120° Diffuser
5.000 K | daylight white
Ra > 80
10.725 lm / 65 W
IP 40
-20 °C to +45 °C
43052-TD
120° Diffuser
4.000 K | normal white
Ra > 80
10.725 lm / 65 W
IP 40
-20 °C to +45 °C

Lucid linea workplace

Lucid linea performer | Workplace luminaire with touch dim
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44041-TD
90° Lens optics
5.000 K | daylight white
Ra > 80
10.200 lm / 65 W
IP 40
-20 °C to +45 °C
44042-TD
90° Lens optics
4.000 K | normal white
Ra > 80
10.200 lm / 65 W
IP 40
-20 °C to +45 °C
44051-TD
120° Diffuser
5.000 K | daylight white
Ra > 80
10.660 lm / 65 W
IP 40
-20 °C to +45 °C
44052-TD
120° Diffuser
4.000 K | normal white
Ra > 80
10.660 lm / 65 W
IP 40
-20 °C to +45 °C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44041-TD
90° Lens optics
5.000 K | daylight white
Ra > 80
10.200 lm / 65 W
IP 40
-20 °C to +45 °C
44042-TD
90° Lens optics
4.000 K | normal white
Ra > 80
10.200 lm / 65 W
IP 40
-20 °C to +45 °C
44051-TD
120° Diffuser
5.000 K | daylight white
Ra > 80
10.660 lm / 65 W
IP 40
-20 °C to +45 °C
44052-TD
120° Diffuser
4.000 K | normal white
Ra > 80
10.660 lm / 65 W
IP 40
-20 °C to +45 °C

Special solutions for special requirements are available on request.

Feel free to contact us!

Our sales team will advise you without any obligations in order to realize the ideal lighting conditions for you.

You can reach us on +49 (0)7191 32 30 20 or via the contact form below.
