Lucid pollux

  • Areas of application

    Warehouses and production halls, underpasses and parking garages, outdoor areas and canopies, sales areas, tunnels, garages, office lighting, workshops and production facilities

  • Protection degree

    IP 66 in accordance with DIN EN 60529

  • Beam angle

    Available with 120° beam angle

  • Control system

    Can be automated via DALI connection

  • Photobiological safety

    High-quality LEDs ensure that the retina remains undamaged even during long periods of work

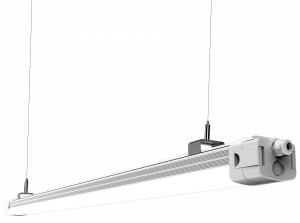

Flexible LED moisture-proof luminaire with adjustable brightness and color temperature

The luminaire for every situation - powerful luminosity, quick to install and easy to use. With the Lucid pollux, you can reliably master any lighting requirement. With the robust IK10 housing, a load of 20 joules is no problem for the light. The reason for this is the sturdy aluminum housing and the flexible PC cover. As a result, many industrial applications can be mastered. Other areas of use include damp rooms, parking garages, outdoor areas, canopies or even production halls and warehouses. Here too, the Lucid pollux benefits from its high protection rating of IP66, which prevents the ingress of water and dust.

With the integrated power and Kelvin switch, the light output or light color can be adjusted or changed in just a few seconds. You can regulate the output simply and completely without tools using the DIP switch in 4 different output levels (40, 50, 55, 60 watts) and 3 different light colors (4,000 K, 5,000 K, 6,000 K). In addition, the Lucid pollux has 5×1.5mm² through-wiring as standard. This significantly reduces costs and installation time.

The mounting options are just as limitless. The Lucid pollux can be surface-mounted directly on the ceiling, suspended by chain or via a rotating bracket. This allows you to rotate the luminaire to the left and right.

Extra added value: increase your energy savings by integrating an intelligent light and motion sensor. This is because the Lucid pollux can be individually extended with features such as a light and motion sensor and/or an emergency power solution. With the emergency power solution, a battery pack with an emergency power switch is integrated into the luminaire. In the event of a power failure, the luminaire switches to emergency power mode via the switch and uses the battery. The status of the emergency power pack can be read from the ground via an LED on the housing. However, the battery pack must be replaced at the intervals specified by the battery manufacturer.
Up to 0 years
Manufacturer's guarantee
Up to 0 years
Spare parts guarantee

Variants

Lucid pollux

Standard version 1,500 mm and 1,200 mm | Light color and power selectable

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
18601
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
6.000 lm – 9.000 lm /
Dipswitch 40 – 60 W
IP 66
-20°C to +45°C
18602
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
5.700 lm – 7.500 lm /
Dipswitch 38 – 50 W
IP 66
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
18601
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
6.000 lm – 9.000 lm /
Dipswitch 40 – 60 W
IP 66
-20°C to +45°C
18602
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
5.700 lm – 7.500 lm /
Dipswitch 38 – 50 W
IP 66
-20°C to +45°C

Lucid pollux

Standard version extended with integrated battery pack | Light color and power selectable

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
18611
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
6.000 lm – 9.000 lm /
Dipswitch 40 – 60 W
IP 66
-20°C to +45°C
18612
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
5.700 lm – 7.500 lm /
Dipswitch 38 – 50 W
IP 66
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
18611
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
6.000 lm – 9.000 lm /
Dipswitch 40 – 60 W
IP 66
-20°C to +45°C
18612
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
5.700 lm – 7.500 lm /
Dipswitch 38 – 50 W
IP 66
-20°C to +45°C

Lucid pollux

Standard version extended with integrated sensor | Light color and wattage selectable

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
18621
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
6.000 lm – 9.000 lm /
Dipswitch 40 – 60 W
IP 66
-20°C to +45°C
18622
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
5.700 lm – 7.500 lm /
Dipswitch 38 – 50 W
IP 66
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
18621
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
6.000 lm – 9.000 lm /
Dipswitch 40 – 60 W
IP 66
-20°C to +45°C
18622
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
5.700 lm – 7.500 lm /
Dipswitch 38 – 50 W
IP 66
-20°C to +45°C

Lucid pollux

Standard version extended with integrated battery pack and sensor | light color and power selectable

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
18623
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
6.000 lm – 9.000 lm /
Dipswitch 40 – 60 W
IP 66
-20°C to +45°C
18624
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
5.700 lm – 7.500 lm /
Dipswitch 38 – 50 W
IP 66
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
18623
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
6.000 lm – 9.000 lm /
Dipswitch 40 – 60 W
IP 66
-20°C to +45°C
18624
120°
choose between
4.000 K | warm white
5.000 K | normal white
6,000 K | daylight white
Ra > 85
5.700 lm – 7.500 lm /
Dipswitch 38 – 50 W
IP 66
-20°C to +45°C

Special solutions for special requirements are available on request.
