Lucid linea performer

  • Areas of application

    Industrial applications, production halls and warehouses, manufacturing and workshops, industrial applications with higher loads, applications with dust or moisture exposure

  • Protection degree

    IP54 according to DIN EN 60529

  • Beam angle

    Available with 120°/90°/60°/30° beam angle

  • Control system

    Can be automated via sensor and DALI connection

  • Photobiological safety

    High-quality LEDs ensure that the retina remains undamaged even during long periods of work

Continuous rooflights with intelligent plug-and-lock system

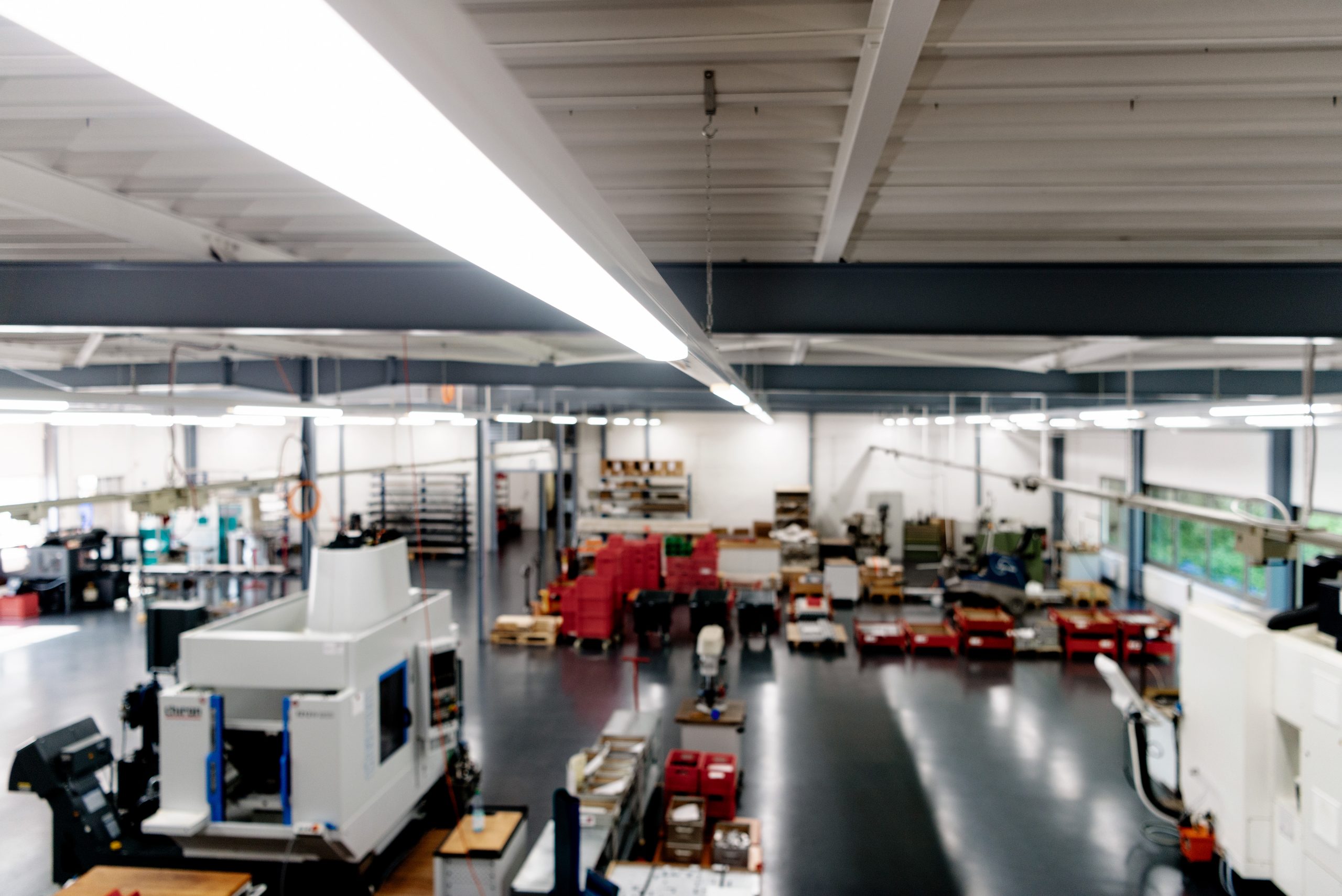

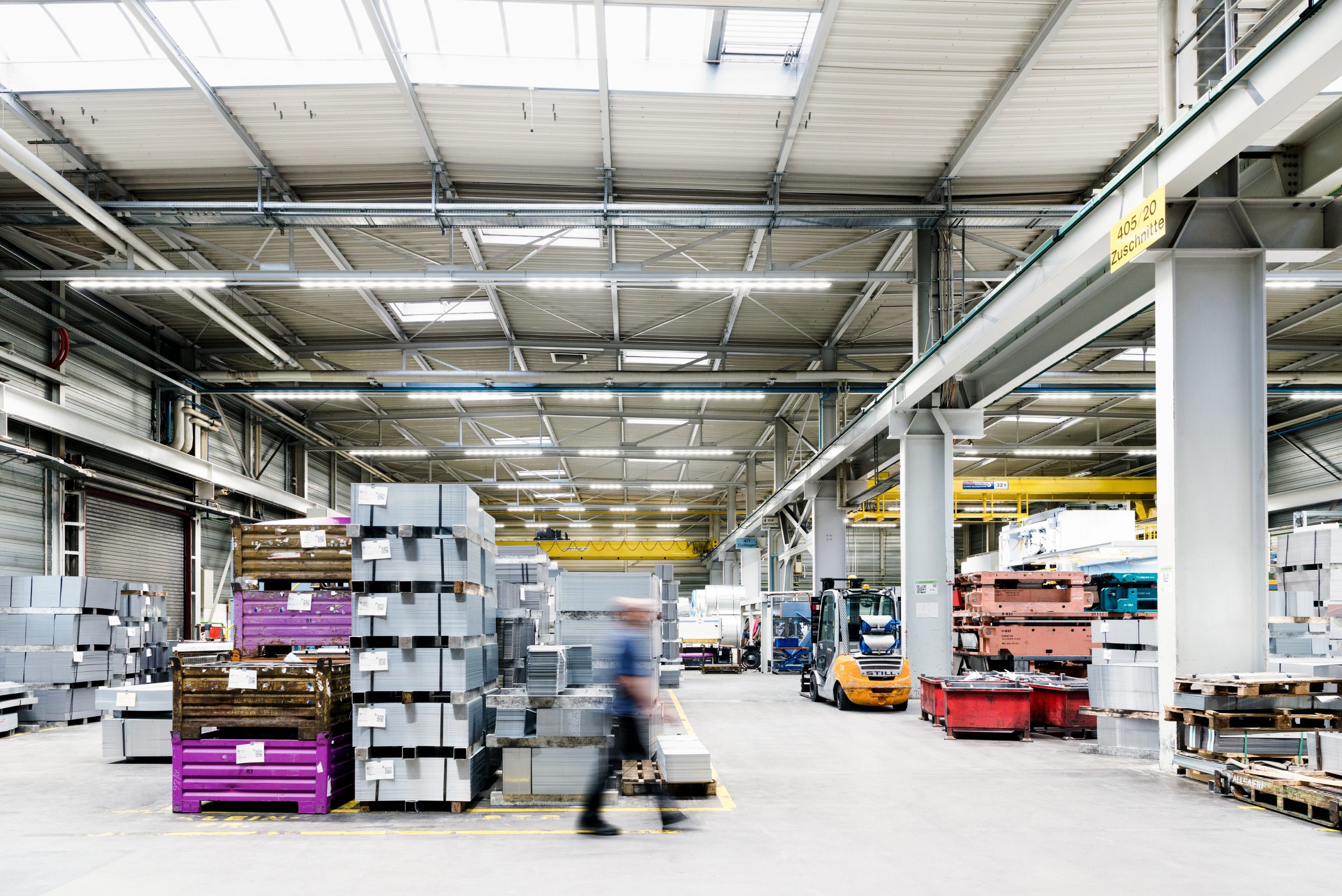

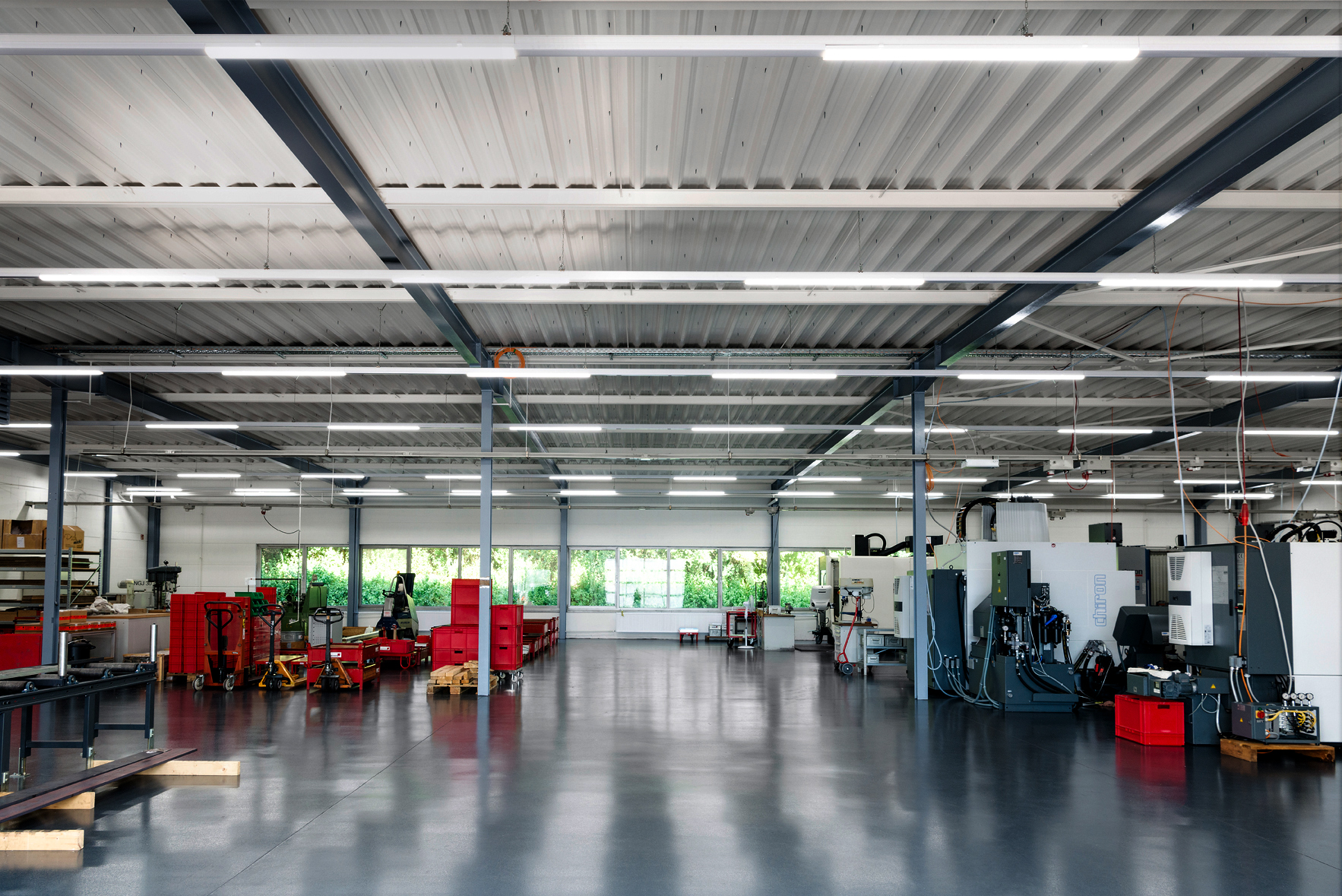

The newly developed Lucid Linea performer LED light strip from LIGHTS guarantees perfect lighting conditions in industrial halls and warehouses with high levels of dirt or moisture, sales areas, trade fair and exhibition halls.

Whether as a single luminaire or as a line system, with a luminous flux of up to 10,660 lumens, glare-free lighting quality is achieved at a height of up to 10 meters.

With the linea performer's plug and lock system, you remain flexible at all times and can subsequently change the position of light points, add or remove light modules. Changes can be made in seconds and only require a screwdriver as a tool. The production flow is hardly affected by subsequent rescheduling or extensions and there are no limits to your flexibility.

Our Lucid linea performer offers further advantages in the IP protection class, which is increased from IP 40 to IP 54 thanks to rubber seals, as well as fall protection thanks to clamping clips. This prevents the light insert from falling down in the event of impact or maintenance.

Our LIGHTS continuous-row system not only impresses with its high system efficiency of up to 164 lumens/watt, but also with various high-performance lens optics at 30 degrees, 60 degrees or 90 degrees. Our continuous-row system is also available with glare-free 120 degree diffuser optics, so that every area is perfectly illuminated and nobody is affected by glare.

It is also possible to save energy by integrating intelligent lighting control via DALI, programmable daylight sensors and motion detectors. It is also possible to integrate emergency lighting for escape routes and emergency exits into the continuous-row lighting system.
Up to 0 years
Manufacturer's guarantee
Up to 0 years
Spare parts guarantee

Variants

Lucid linea performer 90

Single luminaire | standard version (230 V connection and integrated end caps)

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44041
90°
5.000 K | daylight white
Ra > 80
10.200 lm / 65 W
IP 54
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44041
90°
5.000 K | daylight white
Ra > 80
10.200 lm / 65 W
IP 54
-20°C to +45°C

Lucid linea performer 120

Single luminaire | standard version (230 V connection and integrated end caps)

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44051
120°
5.000 K | daylight white
Ra > 80
10.660 lm / 65 W
IP 54
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44051
120°
5.000 K | daylight white
Ra > 80
10.660 lm / 65 W
IP 54
-20°C to +45°C

Lucid linea performer 90

Luminaire module with optics

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44111
90°
5.000 K | daylight white
Ra > 80
10.200 lm / 65 W
IP 54
-20°C to +45°C
44112
90°
4.000 K | normal white
Ra > 80
10.200 lm / 65 W
IP 54
-20°C to +45°C
44116
90°
5.000 K | daylight white
Ra > 80
6.255 lm / 40 W
IP 54
-20°C to +45°C
44117
90°
4.000 K | normal white
Ra > 80
6.255 lm / 40 W
IP 54
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44111
90°
5.000 K | daylight white
Ra > 80
10.200 lm / 65 W
IP 54
-20°C to +45°C
44112
90°
4.000 K | normal white
Ra > 80
10.200 lm / 65 W
IP 54
-20°C to +45°C
44116
90°
5.000 K | daylight white
Ra > 80
6.255 lm / 40 W
IP 54
-20°C to +45°C
44117
90°
4.000 K | normal white
Ra > 80
6.255 lm / 40 W
IP 54
-20°C to +45°C

Lucid linea performer 120

Luminaire module with diffuser

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44121
120°
5.000 K | daylight white
Ra > 80
10.660 lm / 65 W
IP 54
-20°C to +45°C
44122
120°
4.000 K | normal white
Ra > 80
10.660 lm / 65 W
IP 54
-20°C to +45°C
44126
120°
5.000 K | daylight white
Ra > 80
6.560 lm / 40 W
IP 54
-20°C to +45°C
44127
120°
4.000 K | normal white
Ra > 80
6.560 lm / 40 W
IP 54
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44121
120°
5.000 K | daylight white
Ra > 80
10.660 lm / 65 W
IP 54
-20°C to +45°C
44122
120°
4.000 K | normal white
Ra > 80
10.660 lm / 65 W
IP 54
-20°C to +45°C
44126
120°
5.000 K | daylight white
Ra > 80
6.560 lm / 40 W
IP 54
-20°C to +45°C
44127
120°
4.000 K | normal white
Ra > 80
6.560 lm / 40 W
IP 54
-20°C to +45°C

Lucid linea performer 60

Luminaire module with optics

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44141
60°
5.000 K | daylight white
Ra > 80
10.355 lm / 65 W
IP 54
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44141
60°
5.000 K | daylight white
Ra > 80
10.355 lm / 65 W
IP 54
-20°C to +45°C

Lucid linea performer 30

Luminaire module with optics

Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44131
30°
5.000 K | daylight white
Ra > 80
10.450 lm / 65 W
IP 54
-20°C to +45°C
Art. No. Beam angle Color temperature* CRI Luminous flux/output Protection degree Ambient temperature
44131
30°
5.000 K | daylight white
Ra > 80
10.450 lm / 65 W
IP 54
-20°C to +45°C

Special solutions for special requirements are available on request.

* also available in 3,000 K and 6,500 K on request
